Products Stabilizer

Matsuyama

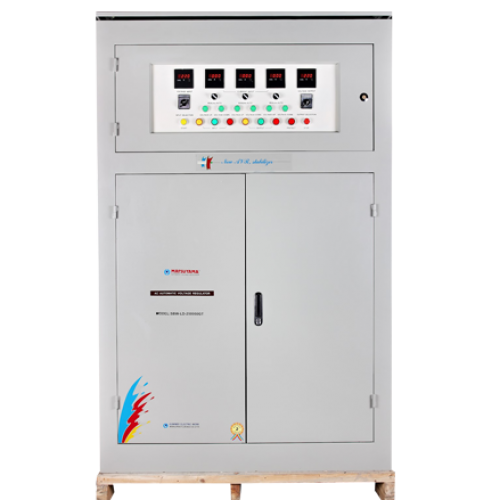

SBW /LD 250000 GT

SBW /LD 250000 GT dengan kapasitas 250KVA, jenis ini termasuk kedalam Three phase yang memiliki sistem DC Servo Motor dapat menstabilkan tegangan masuk yang naik turun dan perubahan beban agar tegangan keluaran selalu stabil.

Spesifikasi
Phase Three Phase
Input Voltage 280 V – 430 V (Volt Standard(L)) & 230 V – 430 V (Volt Standard(K))
Output Voltage 380 V ± 2%​ (Volt Standard(L)) & 380 V ± 2%​ (Volt Standard(K))
Output Over Voltage protection 3 phase 430 V automatic cut off
Frequency 50/60Hz
Respon Time Within 1 Second againt 10% input voltage deviation
Efficiency Better than 98%(Input Voltage 180 V, Output Voltage 220 V)
Ambient Temperature -5°C +40°C
Ambien Humidity Less than 90% (relative humadity)
Temperature Rise Less than 75°C  (Input voltage 180V,Output voltage 220V)
Cooling System Convection-cooled
Control System AVR:DC Servo Motor, SBW: AC Servo Motor
